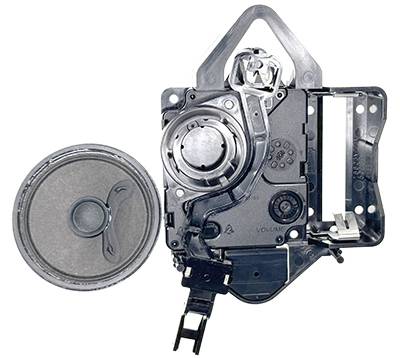

Seiko Dual Chime Pendulum Movement - 17mm Handshaft

Top quality Seiko movement with selectable Westminster or Whittington chimes. Includes a 2-1/4” detachable speaker with 10” long wires for mounting in the clock case or it can be mounted on the back of the movement. It chimes on the 1/4’s and strikes on the hour. There’s a night shut-off and volume controls. The movement measures 3-1/4” x 4-1/2” x 1-5/16” thick. The two movements can combine for price breaks. Hardware includes brass washer, hex nut, and open nut. Runs on one “C” battery which is not included. I-shaft hands and pendulums are not included and must be ordered separately.
- 17mm Handshaft with a 5/8” long handshaft. Maximum dial thickness is 1/4”.

PLEASE NOTE: Move the night chime selector switch to left most position. Moving clockwise direction, use the rear-mounted hand set to advance the hands until they reach the current time. BE SURE TO STOP AT EACH HOUR TO LET CHIME & HOUR COUNT PLAY COMPLETELY BEFORE GOING ON TO THE NEXT HOUR! Failure to stop at each hour may cause the chime to be out of sequence. Let the clock run for at least one full hour so the chime can fully reset.
